Still guessing? Or already measuring?

EMC special offer 2019 – EMCheck measuring clamp set

Early and easy detection of EMC weak points
- with the EMCheck® measuring clamp set

Equipotential bonding, electromagnetic compatibility, stray currents - these and similar technical terms are increasingly encountered by operators and maintenance staff of industrial networks. Nevertheless, many neglect to check the actual system load. However, checking the equipotential bonding quality is easier than you think!

3 solid reasons to choose the EMCheck® measuring clamp case

#1: EMC guideline recommends testing of equipotential bonding

The user organization PROFIBUS & PROFINET International (short: PI) summarizes reference values and recommendations in a guideline for functional equipotential bonding. Even minor modifications can improve the interference immunity of your systems. As long as the quality of the potential equalization is known.
The PI recommends to check and monitor all measures during running operation.

#2: EMC measurements are part of personnel and immission protection

There are various recommendations, EU directives and regulations for EMC in the field of accident prevention which must be observed:

DIN EN 60204: Safety of machinery - Electrical equipment
DIN EN 61140: Currents in protective conductors
DIN EN 50310: Application of measures for earthing & equipotential bonding in buildings with IT equipment
DIN VDE 0100-444: Erection of low-voltage systems
2013/35/EU: European Directive on Electromagnetic Field - Protection of Individuals
EMFV: Ordinance for the Protection of Employees against Hazards from Electromagnetic Fields
DGUV Regulation 15 (previously BGV B11): Accident Prevention Regulation Electromagnetic Fields

#3: In 2018, 20 percent of all facility malfunctions were due to EMC

According to the Vortex Report, in 2018, EMC problems were detected at every fifth measurement. This means that inadequate equipotential bonding is one of the top 3 factors for system malfunctions and failures in industrial networks.

Simply measure by yourself

Turn it on. Cable in. Measure.

EMCheck measuring clamp set: Simply measure EMC yourself

intuitive operating
Our EMC measuring clamps do not require any instrument training. They can be used immediately.
easy to use
No complicated settings or device configurations necessary.
No external service technician required
Check your equipotential bonding quality in-house and reduce your service costs.

Our recommendation:
Check your systems' EMC status at regular intervals. We recommend a check every one to two years.

EMCheck^® measuring clamp set

With the EMCheck^® measuring clamp set, you secure the basic requirement for optimum machine operation. Determine the actual quality of the equipotential bonding of your machines and systems without great effort and in the twinkling of an eye.

All you need to know about the EMCheck^® measuring clamp set

Measuring impedances in equipotential bonding (low impedance)
Check the quality of the installed shielding and earthing measures without stopping your machines with the EMCheck^® MWMZ II.
Detect shielding and leakage currents
Use the EMCheck^® LSMZ I to identify high-frequency shielding currents. These are a common reason for sporadic malfunctions in industrial data communication.
Locate insulation faults / defects
Find isolation-related weak spots before problems occur

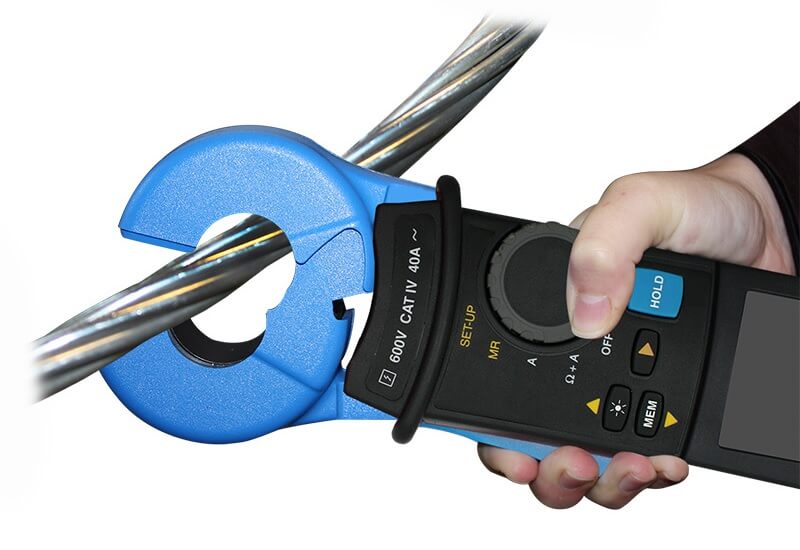

Easy handling, even in difficult installation positions
Thanks to large and easy to open measuring reels on the clamp head

Get information about the EMC status of your system. Measure the quality of your equipotential bonding - with the EMCheck^® measuring clamp set. Request your offer now!

Included measuring clamps

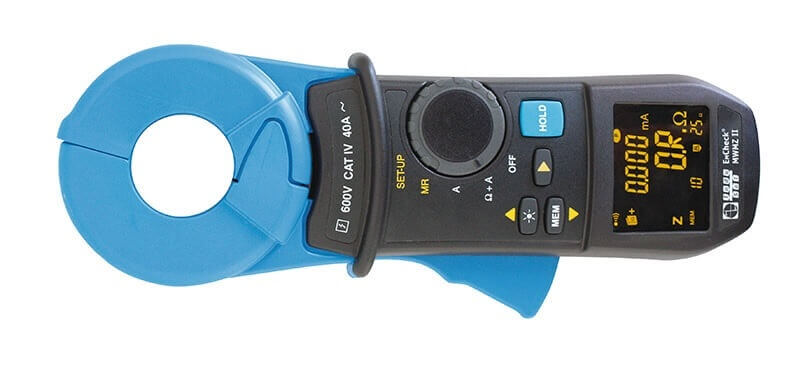

EMCheck^® MWMZ II
mesh resistance tester

EMCheck^® LSMZ I
leakage tester

Convincing even at second glance - EMC measuring clamps from Indu-Sol

„Give the quality of your equipotential bonding a value!“ with EMCheck® MWMZ II

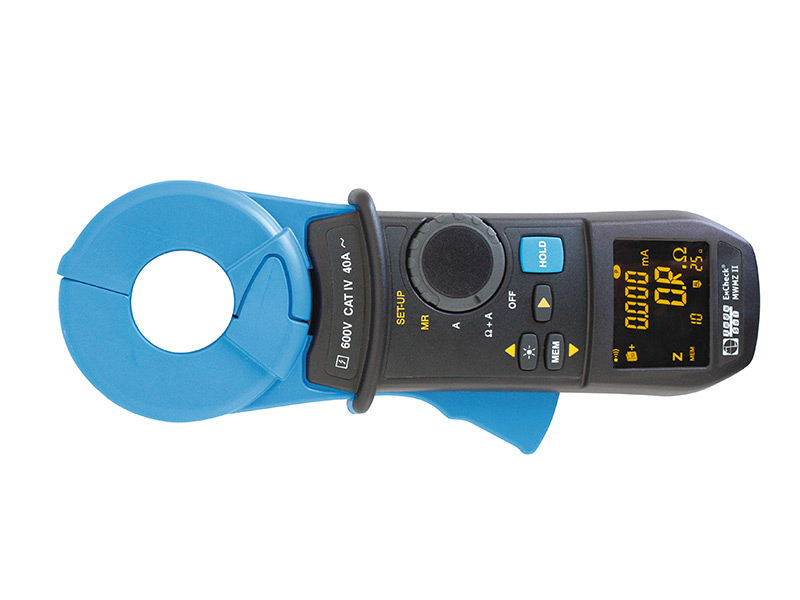

EMCheck^® MWMZ II
Mesh resistance measuring clamp

If you do not want to rely solely on intuitive statements or your feeling for the quality of the installed shielding and earthing measures in the future, you will have to provide the metrological proof of good equipotential bonding according to DIN EN 50310. The EMCheck® MWMZ II mesh resistance clamp is the suitable tool for this.

Measurement of ground loop resistance and ground loop inductance
Touch voltage display (for the first time)
alerts when a dangerous voltage occurs
Storage of up to 300 measurements with time stamp
Easy handling due to easy opening of the pliers
Good visibility of information through OLED display

Recommended guide values - current load (according to Indu-Sol):

Protective equipotential bonding: max. 0.3 Ohm at 2.0 kHz
Functional equipotential bonding: max. 0.3 Ohm at 2.0 kHz
Shielding of motor cables: max. 0.3 Ohm at 2.0 kHz
Shielding of signal cables: max. 0.6 Ohm at 2.0 kHz

„Detect currents and take appropriate corrective measures.“ with EMCheck® LSMZ I

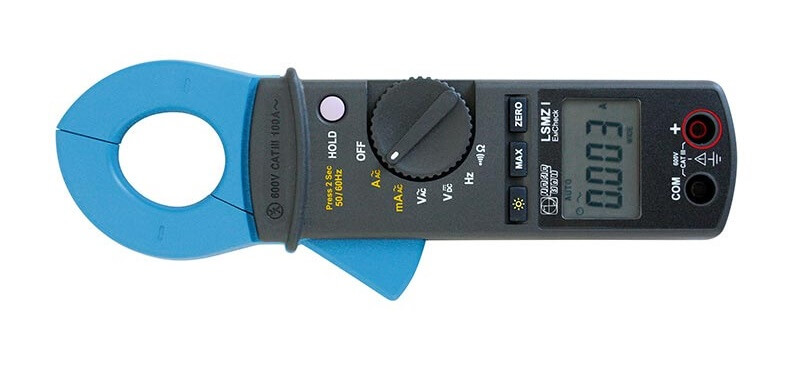

EMC measuring clamp case: EMCheck LSMZ I (leakage tester)

EMCheck^® LSMZ I
leakage measuring clamp

The EMCheck^® LSMZ I leakage measuring clamp is specially designed for measuring leakage and shielding currents in the frequency band of 50/60 Hz or 5 Hz - 1 kHz. Thanks to the large opening (2.8 cm), cables can also be conveniently measured in places that are difficult to access.

Measurement of shield and leakage currents (low and high frequency)
Adjustable measuring range (30 µA - 100 A)
Localization of insulation faults / unwanted disconnections of residual current circuit breakers
All functions of a multimeter
Continuous measurements via hold functions (e.g. maximum current)
Illuminated display and integrated measured value memory

Recommended guide values - current load (according to Indu-Sol):
