Fastening components
The use of fastening components like EMClots® and EMCrimp simplifies the realization of a decentralized equipotential bonding system (CBN). The various components are provided for connecting, fastening and junction of bare conductor cables – stranded or finely stranded. It prevents issues of undefined parasitic currents and equipotential bonding is made uniform in long production lines.
It is ideal for realization of EN 50310 and close-meshed equipotential bonding systems with low impedance in machines and plants using high-frequency drive solutions.
EMClots® fastening components
EMClots® are ideally suited for the implementation of EN 50310 to implement close-meshed, low-impedance equipotential bonding systems in machines and systems using higher-frequency drive solutions (VSD). EMClots® are fixed with mounting screws M6x9.
• Fastening, connecting and branching conductor cables
• Mounting on cable trays, trusses or other electrically conducting plant components
• For bare conductor cables stranded or finely stranded
• Allow a flexible implementation of extandable equipotential bonding systems
EMCrimps fastening components
The EMCrimp are ideally suited for implementing close-meshed, low-impedance equipotential bonding systems in accordance with DIN EN 50310 in machines and systems with the use of higher-frequency drive solutions (frequency converter). With an electro-hydraulic hand press, the components can be used for the permanent connection of conductor ropes - both very fine- and multi-stranded. The integrated drill hole is used for fastening.
• Fastening and connecting conductor cables
• Mounting on cable trays, trusses or other electrically conducting plant components
• For bare conductor cables stranded or finely stranded -
Conductor cables
Tin-plated conductor cables suit the construction of an equipotential bonding system in accordance with DIN EN 50310. Thanks to the tinning the cables have a lower impedance than an applicable solid conductor and therefore offer a higher discharge capacity for higher frequent currents (kilohertz range).

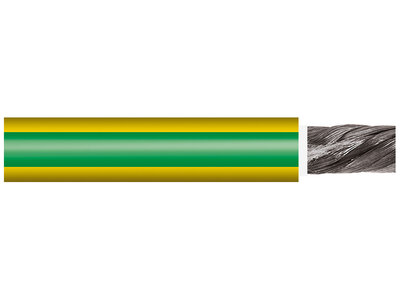

Conductor cable "class 8" isolated, suitable for torsion
The conductor cables class 8 (isolated) are highly flexible (according to DIN 46438) for specific applications. Through their abrasion-resistant coating and their special, torsion structure these cables can be used in drag chains and robots. With their finely stranded structure (max. 0.07 mm Ø) and the tinning they have a lower impedance and a higher flexibility than an applicable solid conductor and therefore offer a higher discharge capacity for higher frequent currents (kilohertz range).
Multi-frequency conductor cable
The multi-frequency conductor cables are highly flexible according to DIN 46440. Through the finely stranded core, combined with a tinned shielding braid the cables feature an extraordinary discharge capacity for lower and higher frequent currents. The multi-frequency conductor cables are suitable for the realisation of a meshed equipotential bonding system according to DIN EN 50310.
Conductor cable "class 7" tinned and extra-fine wired
Type of application: highly-flexible use
Conductor cables class 7 consist – depending on the diameter – of up to 4116 individual tinned copper wires twisted together. According to EN 60228 they are highly flexible cables class 6, column 6. They are applicable for the realisation of an equipotential bonding system according to DIN EN 50310.
Conductor cable "class 7" tinned and extra-fine wired
Type of application: highly-flexible use
Conductor cables class 7 consist – depending on the diameter – of up to 4116 individual tinned copper wires twisted together. According to EN 60228 they are highly flexible cables class 6, column 6. They are applicable for the realisation of an equipotential bonding system according to DIN EN 50310.
Conductor cable class 5 tinned fine-wired
Type of application: flexible use
The conductor cables class 5 consist of up to 128 single tinned drilled copper wires (depending on Ø). They are flexible wires of class 5, column 3, certified according to EN 60228. The cables are available in isolated and non-isolated style. Both are suitable for the junction of devices and components and therefore for the realisation of an equipotential bonding system according to DIN EN 50310.
Conductor cable class 2 tinned and twisted
Type of application: fixed installation - combinable with EMClots
The conductor cables class 2 consist of up to 19 individual tinned copper wires twisted together. According to EN 60228 they are stiff cables of class 2, column 1. They perfectly suit the construction of an equipotential bonding system in accordance with DIN EN 50310. -
Shield contacts, terminals, clamps
Fastening components for conductor cables and copper cables as well as shield clamps support you to discharge parasitic or compensating currents in order to receive low impedance equipotential bonding. These components can simply be mounted on cables without using tools in order to provide an optimal shield contact. It is not necessary to readjust the spring pressure, since there is a constant pressure on cable shield. The shield clamps are available in a standard galvanized and a brass version.
EMC STARTERBOX

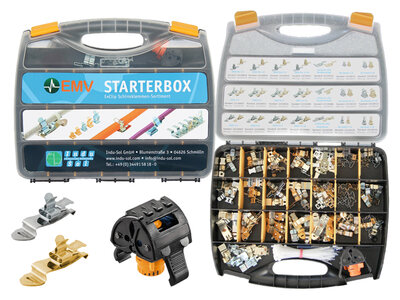

The case for any EMC eventuality with fastening components for conductor cables and copper cables, shield clamps as well as the EMFlex stripping tool.
Busbar (10 x 3 mm)
Key
• S = shield
• K = clamp
• S = busbar
• Z = strain relief
DIN rail (35 mm)
Key
• S = shield
• K = clamp
• H = DIN rail
• Z = strain relief
Direct Mounting (M4)
Key
• S = shield
• K = clamp
• D = direct mounting
• Z = strain relief
• M4 = fastening drill -
Cables
The motor cables SymFlex® are optimized for use with frequency-controlled drives. A minimum of electromagnetic emission in adjecent circuits is guaranteed by the small operating capacity and inductivity of the cable, that is enclosed in meshed and foil shield (100 % cover). Recommended use with: large numer of drives, high cable lengths (> 20m), high frequencies of frequency inverters / controllers and sensitive automation electronics in the drives environment.
Highlights:
✓ Minimising unwanted currents ✓ Optimised for frequency-controlled drives ✓ Low working capacitance/inductance guaranteeing minimum electromagnetic emissions ✓ Symmetrical arrangement of cable cores ✓ Special CU braid and additional electrostatic shieldingCable +FE for PROFIBUS and PROFINET
The cables of the product series +FE are developed to run a cable in strongly EMC contaminated environments. Get more information about PROFIBUS cable +FE and PROFINET cable +FE.
Symmetrical motor cable SymFlex® EMV-DRIVE
Motor cable type: 2YSLCYKJB
The Motor cables are used for fixed laying in dry, humid and wet environments, indoors, outdoors and for flexible use without excessive mechanical stress.
Symmetrical motor cable SymFlex® +FE
Motor cable type: 2YSLCYKC-J
Cables are provided with a copper braid and an additional electrostatic shield in order to reduce the impact on electromagnetic fields to a reliable measure. -
Switches with leakage current monitoring
Modular and compact industrial switches (manageable)
» further information about PROmesh products
PROFINET/Ethernet Switch PROmesh P9
The PROFINET/Ethernet Switch PROmesh P9 is the first full PROFINET switch that is equipped for the increased performance requirements in the PROFINET and conforms to Conformance Class B as well as Netload Class III requirements. With its optimised shielding contacts in the RJ45 jacks and leakage current monitoring the PROFINET/Ethernet switch has a high EMC resistance required in the industrial environment.
Highlights:
✓ Leakage current monitoring ✓ 9 x 100 MBit/s RJ45 ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface
PROFINET/Ethernet Switch PROmesh P10
The PROmesh P10 is a 10 port Gigabit switch for industrial environments. It is ideally suited for use in PROFINET and Industrial Ethernet networks. It impresses especially with its helpful diagnostic and monitoring functions, such as line monitoring during running plant operation.
PROFINET/Ethernet Switch PROmesh P20
The PROFINET/Ethernet Switch PROmesh P20 is another switch of the PROmesh series from Indu-Sol. The functions of the Promesh P9 can be found in this switch. In addition to the 20 ports, the switch has firewall functionality and gigabit support.
Highlights:
✓ Leakage current monitoring ✓ 16 x 10/100 MBit/s RJ45 ports ✓ 4 x 1000Base-X SFP ports ✓ Optimised shielding contact ✓ Compact design ✓ Displays port utilisation and discards on web interface ✓ NAT Routing/Firewall function ✓
Improve the Equipotential Bonding with the right infrastructure components
Until a few years ago it was assumed, that disturbances in data communication were only a internal system problem. Today, it is known, that external influences like EMC disturbances or an insufficient equipotential bonding cause increasingly communication disturbances.
Our EMC components support you to reduce the electromagnetic incompatibility in a fieldbus relevant environment.
