PROFIBUS network / infrastructure components
Powerful PROFIBUS components from a single source
Reliable infrastructure components for PROFIBUS systems
In modern industry, effective communication analysis and maintenance of PROFIBUS networks is crucial to ensure trouble-free production processes. Our infrastructure components provide the necessary support for non-reactive connectivity to diagnostic tools. This enables full monitoring and fast troubleshooting, even during operation. From the planning phase to commissioning and beyond, our components are designed to provide secure and efficient access to the network structure at all times. These robust and easy-to-use components are compatible with all common cable types and support speeds up to 12 Mbit/s, making them ideal for fast and efficient troubleshooting and routine maintenance of PROFIBUS systems. By integrating our infrastructure components into your systems, you ensure the reliability and efficiency of your industrial communication.
-
Measuring Points
For communication analysis, whether during commisioning, maintenance or troubleshooting, there is a non-reactive measuring point essential for connection of necessary diagnostic tools. Thus, you have access to your system at any time, also during operation, without interrupting the production. During planning process in PROFIBUS it is obligatory to consider suitable network access points for diagnosis.
Intelligent measuring point iPBMA IP20
iPBMA detects both logical faults in data transmission and interferences in signal transmission. This is signalized by several light-emitting diodes.
Active measuring point PBMA IP20
The PBMA IP20 meets not only the requirements of a non-interacting
measuring point but also fulfils the requirements and the function of
an active bus termination.
Active adapter PBMB IP20
The PBMB can be complemented by a PB plug with a 9-pin D-subminiature
connector on the back and thus becomes a PBMA.
Active measuring point PBMX IP67
As PBMX type with the protective system IP 67 it can be used without
protective casing in a rough production environment. This additional power line is used to connect the active measuring adapter.
Active measuring point PBMS IP64
The measuring and programming interface PBMS for front mounting in control cabinets and terminal boxes provides for a simple and optimal
access to the internal MPI or PROFIBUS interface. The integrated
electronic system allows a feedback-free plugging of PROFIBUS analyzers
while the system is running.
Retrofit kit PBMF PB interface electronics
The retrofit kit PBMF is the electronic unit of the measuring and programming interface PBMS IP64 - active termination.
Measuring point PAMA IP67
The diagnostic tool is connected via the M12 connector of the measuring point.
-
Connectors with Screw Terminal
The PG / service interface serves as non-reactive measuring point
for measurements with PROFtest II / PROFI-TM Professional / PB-INspektor® and can also be used as programming interface. The plug is completely shielded by the metal-coated casing. The plug for the terminating resistor that is accessible from outside, disconnects the outgoing segment when being in ON position. When
using the screw terminal all commercially available line types can be connected. so the plug can be used variously.
Diagnostic connector PG/90°
The integrated three LEDs are used for the quick diagnosis of the bus status.
Connector PG/90°
For measurements during operation
Connector PG/35°
For measurements during operation
Connector axial
-
Connectors with Insulation Piercing Terminal
The PG / service interface serves as non-reactive measuring point (partially during operation) for measurements with PROFtest II / PROFI-TM Professional and can also be used as programming interface. The plug is completely shielded by the metal-coated casing. The plug for the terminating resistor that is accessible from outside, disconnects the outgoing segment when being in ON position. When using the screw terminal all commercially available line types can be connected. so the plug can be used variously.
Diagnostic connector PG/90°
The integrated 4 LEDs (Power, TxD, Termination, Error) allow a quick diagnosis of the bus status. Equipped with an insulation piercing terminal (suitable for Fast Connect cables).
Diagnostic connector PG/45°
The integrated 4 LEDs (Power, TxD, Termination, Error) allow a quick diagnosis of the bus status. Equipped with an insulation piercing terminal (suitable for Fast Connect cables).
Diagnostic connector axial
Equipped with an insulation piercing terminal (suitable for Fast Connect cables).
Connector PG/90° Fast Connect
Equipped with an insulation piercing terminal (suitable for Fast Connect cables).
-
Connector M12
The bus connector is specifically designed for a simple, fast and safe
plug & play connection of maximum 40 PROFIBUS devices in PROFIBUS
systems up to 12 Mbps. The bus connector is connected with the bus network by precut M12 PROFIBUS cables. For shielding and safe use even under rougher conditions it has been provided with an all-metal housing. The influences of problematic bus components and the influences of measuring and test devices are largely compensated.
Connector M12 PG/90° compact
Connector M12 PG/90° standard
Connector M12 PG/35° special
Connector M12 without PG 180° axial
M12 circular plug connector FC Plug PRO self-made-up (B-coded)
PROFIBUS machine installation without control cabinets in protection
type IP65/67 demand compact sturdy M12 plug connectors
M12 circular plug connector ready made-up (B coded)
Ready made-up fieldbus lines ensure easy and safe wiring of the fieldbus components.
M12 termination socket
One solution for PROFIBUS components with M12 interfaces
-
INBLOX® Modular Repeater with diagnostic feature
The modular diagnostic repeater of the INBLOX® series is based on a modular extensible repeater with up to maximally 25 isolated bus segments. In addition to the repeater function every bus outlet has a diagnostic function. Besides the known repeater function the bus diagnosis of all outlets is based on the logic and physical data traffic.
INBLOX® Basic Repeater
The DP Basic Rep is the head module of a multiple repeater with an extended diagnosis feature via LED. Four terminal connections provide for the PROFIBUS outlets and thus five segments can be built. The head module can be extended by up to five DP Diag Rep modules.
INBLOX® Intelligent Repeater
The E-head is provided with an extended logic and alarms can be evaluated on the web interface. Depending on the extension modules you receive a warning via LED, a potential-free contact or via web based management.
-
Repeater
PROFIBUS hub MULTIrep
The MULTIrep produces a voltage signal in two, five or seven directions (depending on the version) and raises the signals to the PROFIBUS standard level. The integrated diagnosis via LED provides a simplified troubleshooting in each segment.
Highlights:
✓ Disturbance suppression ✓ Basis for a stable PROFIBUS star structure ✓ Enables stubs in PROFIBUS ✓ Isolates sensitive or problematic areas ✓ Expansions or shutdowns possible during running operation ✓ Errors affect only small parts of the network
Compact Repeater REpeato
The implementation of active spur lines is seen as a main field of use of this smallest repeater of the PROFIBUS world.
Functions and operating states of the repeater are signalled by the integrated LED displays.
Repeater IP67 MR
With the Repeater IP67 it is possible to build up two galvanically
separated PROFIBUS-DP segments.
Built-in Repeater DLP30
A RS 485 repeater for feedback-free connection
of a PROFIBUS slave as an active spur. -
Fiber optics converters
Fiber optic converters
The PROFIBUS fiber optic converters of the OPTIrep series are used for connecting PROFIBUS segments via fiber optic cables with a distance up to 30 km. The system can be used for line structures as well as for redundant ring structures. The integrated diagnosis signals the quality of the connection similar to a traffic light via LED.
Number of FO connections:
F1 = 1 connection
F2 = 2 connections
Fiber type:
SM = Single Mode
MM = Multimode
Fiber-connector:
SC = SC-Connector
ST = ST-Connector -
Industrial Wireless System BLUambas® PROFIBUS
BLUambas® for PROFIBUS ensures a transmission speed of up to 1,5 Mbps. To build up a PROFIBUS radio link one BLUambas® master module and at least one BLUambas® slave module are required. The maximum number of slave modules and PROFIBUS devices depends on the BLUambas® types.
BLUambas® is available with protection class IP20 or IP65 and can be freely selected within a radio link.
Please note that the antennas and adapters are not included in the delivery of the wireless data systems for PROFIBUS. These can be requested separately here
BLUambas® PROFIBUS Classic
A PROFIBUS radio link can be established between a master module and a maximum of one slave module. A maximum of four PROFIBUS devices can be installed behind the radio link and with up to 1.5 Mbps.
Antennas and adapters are not included and must be ordered separately.
BLUambas® PROFIBUS Comfort
A PROFIBUS radio link can be established between a master module and a maximum of four slave modules. A maximum of four PROFIBUS devices can be installed behind the radio link and with up to 1.5 Mbps.
Antennas and adapters are not included and must be ordered separately.
BLUambas® PROFIBUS Premium
A PROFIBUS radio link can be established between a master module and a maximum of eight slave modules. A maximum of four PROFIBUS devices can be installed behind the radio link and with up to 1.5 Mbps. In addition PROFIsafe communication can be transmitted.
Antennas and adapters are not included and must be ordered separately. -
Cables & Lines
Active programming cable APKA II
By the repeater integrated in the plug, the active programming cable APKA facilitates a reactionless plugging on the PROFIBUS to program and check the logic communication quality. The 5 V supply required for repeater operation shall be made available through the pin 5 (GND) and the pin 6 (+5 V) of the contacted 9-pin sub-D socket.

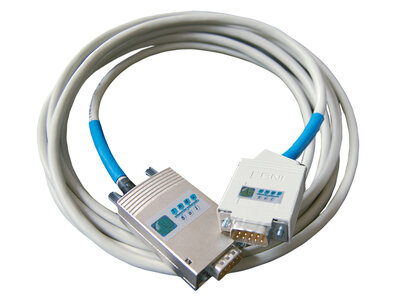

Active stub line ASTL
The ASTL allows the feedback-free connection of a device as an active stub line. This is possible because of the integrated repeater function in the connector.

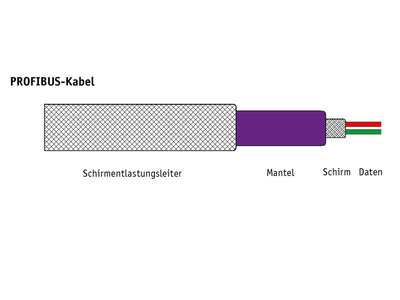

PROFIBUS cable ⁺FE massive
The cables of the product series +FE are developed to run a cable in strongly EMC contaminated environments. The shield relief line fixed around the standard fieldbus cable implements the two features of an additional shield in an EMC contaminated environment and an additional functional equipotential bonding.
PROFIBUS cable ⁺FE flexible
The PROFIBUS cable +FE cable is a flexible data cable for the transference of analogous and digital signals on industrial networks, e.g. in the mechanical engineering.
PROFIBUS cable solid
The double shielding makes the line suitable for use in an electromagnetic
environment as well as dry and humid areas.
PROFIBUS cable flexible
The PROFIBUS cable flexible is used for highly flexible energy chains and constantly moving machine parts. The dual shielding mades this line type perfectly for electromagnetically loaded areas.
PROFIBUS cable drag-chain capable
The PROFIBUS cable extreme has a very high abrasive resistance accompanied by an almost unlimited oil resistance. The data transmission reliability is guaranteed by the special overall braided screen.
-
Connecting Elements
M12 Bus termination (B coded) IP67
The Bus termination IP67 is used to properly terminate a PROFIBUS DP segment.
Control Cabinet Bushing M12 (B coded)
The cable entry into switchgear cubicles or terminal box is rendered through a bushing.
T piece M12 compact
The T piece M12 compact is used to connect PROFIBUS devices.
T piece M12 for PROFIBUS PA
T piece M12 serves as connector of PROFIBUS PA devices.
Power line M12
This power line is used to connect the measuring adapter PBMX IP67.

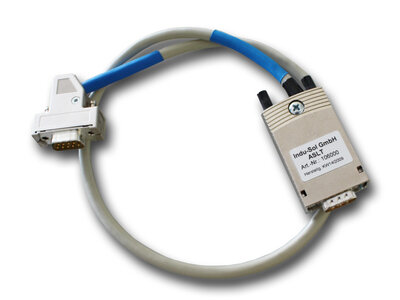

Active stub line „ASTL“ MIYATCHI
The ASTL allows the feedback-free connection of a device as an active
stub line. This is possible because of the integrated repeater function
in the connector.
